2014+ GM BCM Bench Programming

The gray connector isn't necessary for cloning tools, only needed for linking different networks or stock programming. The BCM usually powers up with only the 4 pins on the white X1 connector. If connection fails add pins 5/6 on the green X3 connector for ignition power to activate the BCM. (Click on the picture for a bigger view)

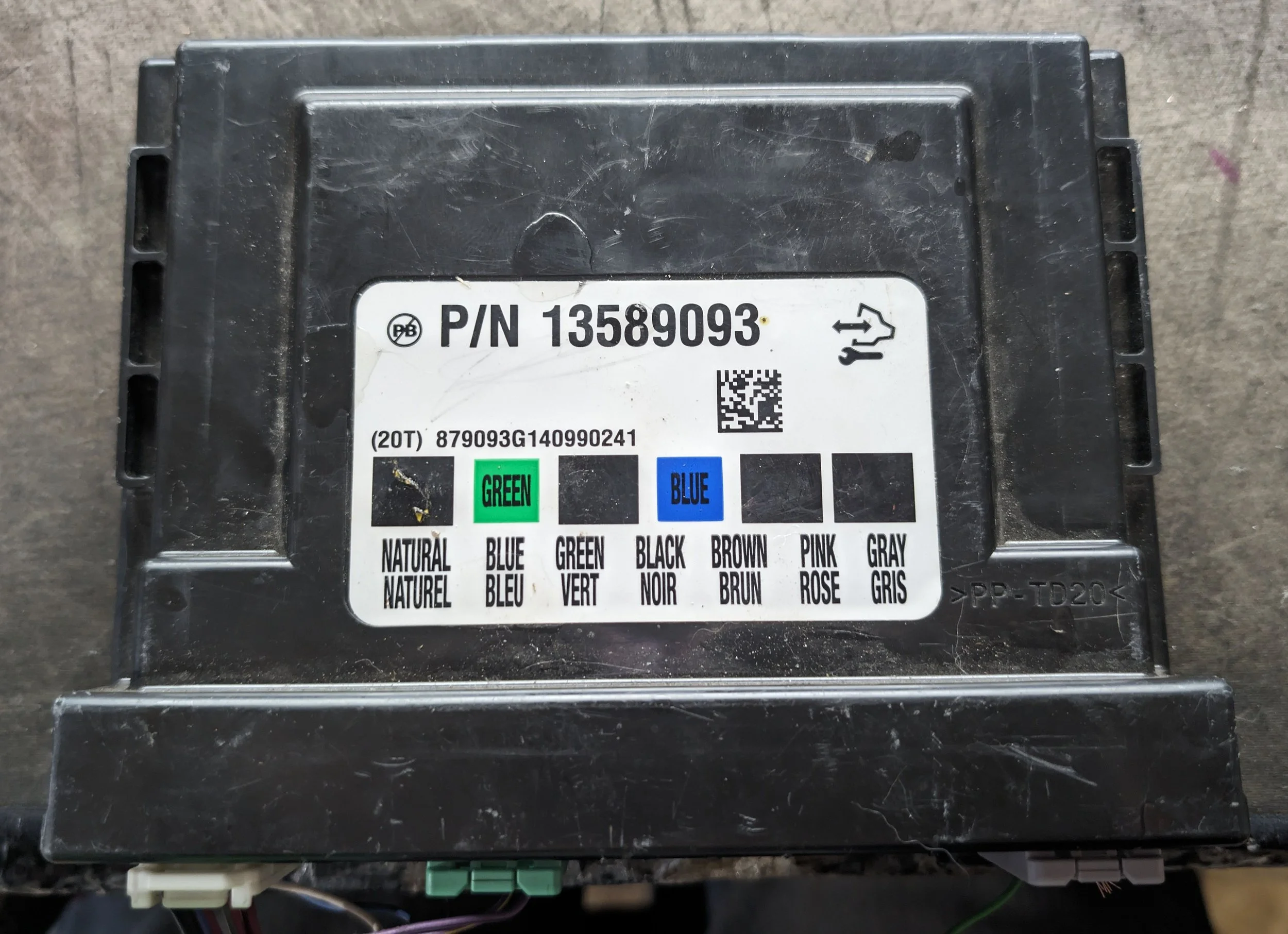

A black plastic automotive control module labeled with P/N 13589093. The label shows color codes "GREEN" and "BLUE" with text in English and French, including "NATURAL," "BLUE," "GREEN," "BLACK," "BROWN," "PINK," and "GRAY." A QR code and wiring are visible.
